New High Speed 17 Station Rotary Tablet Press Model TEU-17H

New High Speed 17 Station Rotary Tablet Press Model TEU-17H
Includes: Set of Round Tooling. (6CrW2Si by hard chrome plating) (customer to specify)
With Upgraded Touch Screen Controls and Dust Collector
(*Siemens and/or Schneider Electrics/Components)
Electrics: 3 Phase / 60 Hertz / 220 Volts, 4Kw, CE.
Delivery Time: approx. 8-10 Weeks from receipt of 75% Deposit.
(balance due prior to shipment from Factory)
Short Video Link of Overview of the Machine: https://www.youtube.com/shorts/lbyL4Ef7Ew0
Short Video Link of Machine to Power: https://www.youtube.com/shorts/6-0rinhqPds
Video Link Testing Machine with Powder (watch until the end) https://www.youtube.com/watch?v=8hY6ELnJkzw

Specifications:
Punch shaft diameter (mm) 19
Dia diameter (mm) 30.16
Dia height (mm) 22.22
Capacity: (pcs/h) Max 75,000(depending on size)
Main pressure (KN) 80
Pre pressure (KN) 12
Max tablet diameter(mm) 16
Max tablet length(mm) 18.5
Max tablet thickness(mm) 10
Max filling depth (mm) 20
Machine dimension (mm) 900x720x1500, Weight 675Kg
*(Subject to Manufactures comparable configuration)
Features:
1. Main pressure of 80KN and Pre-Pressure of 12KN.
2. Equipped with safety interlock function.

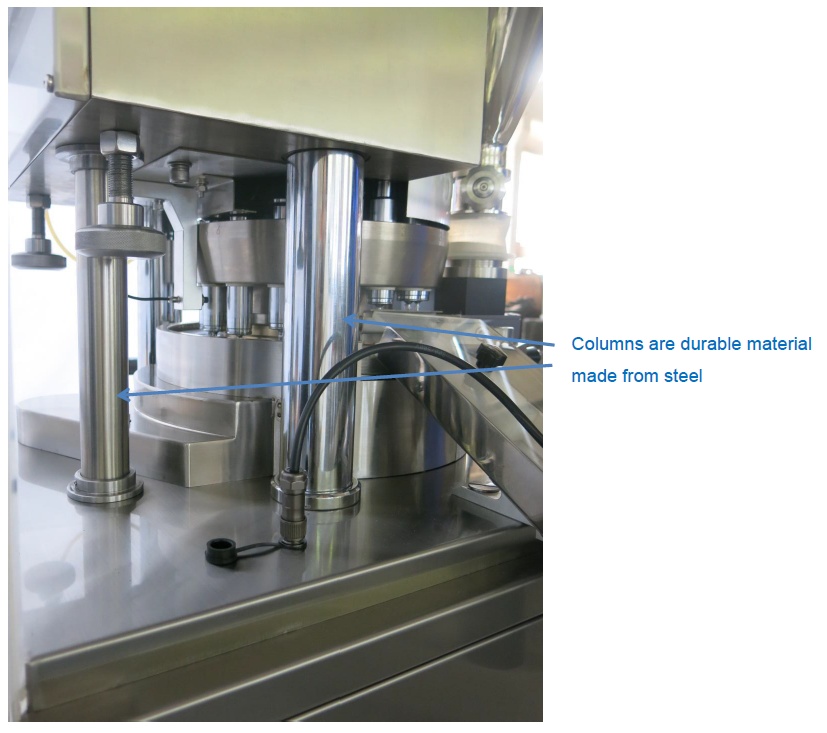

3. Columns are durable material made from steel.
4. Tooling parts can be freely adjusted or removed which is easy for maintenance.
5. Main pressure, Pre-Pressure and feeding system all adopt modular design.
6. The upper and lower pressure roller are easy to clean and disassemble.
7. The main drive system, lubricating system, and knobs adjustment mechanism

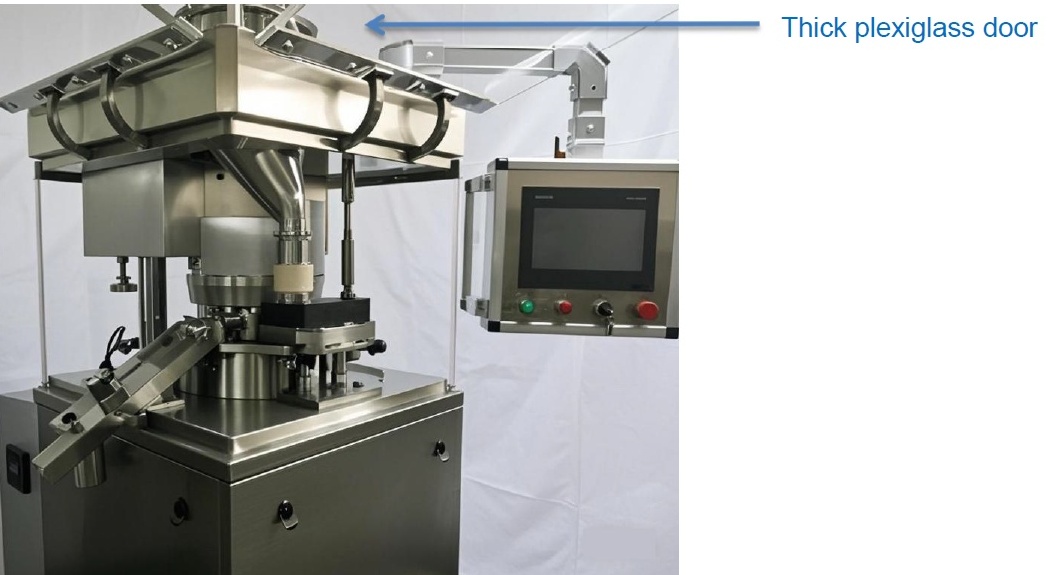

are completely sealed by the left and right door panels, rear door panels and
control cabinet through sealing strips to prevent dust from polluting the machine.
8. Pressure roller is alloy tool steel with high hardness to ensure the continuous use.
9. Easy-to-operate interface for seamless adjustments, monitoring of production process.
10. Built with high-quality materials to ensure long-lasting performance and minimal maintenance.
11. Small Footprint with high capacity and exceptional speeds,
12. It offers robust performance, throughput rates without compromising quality.
Design:
1. Covers an area of only 0.6㎡.
2. Low noise < 75 db .
3. Excellent performance for difficult-to-form materials.
4. With a single tablet rejection system.
5. Adopt advanced double-lifting guide rail technology for upper punches,
That improves tablet ejection and better balance and smoother motion.
6. Intelligent tablet weight control, pressure monitoring function, auto weight adjustment.

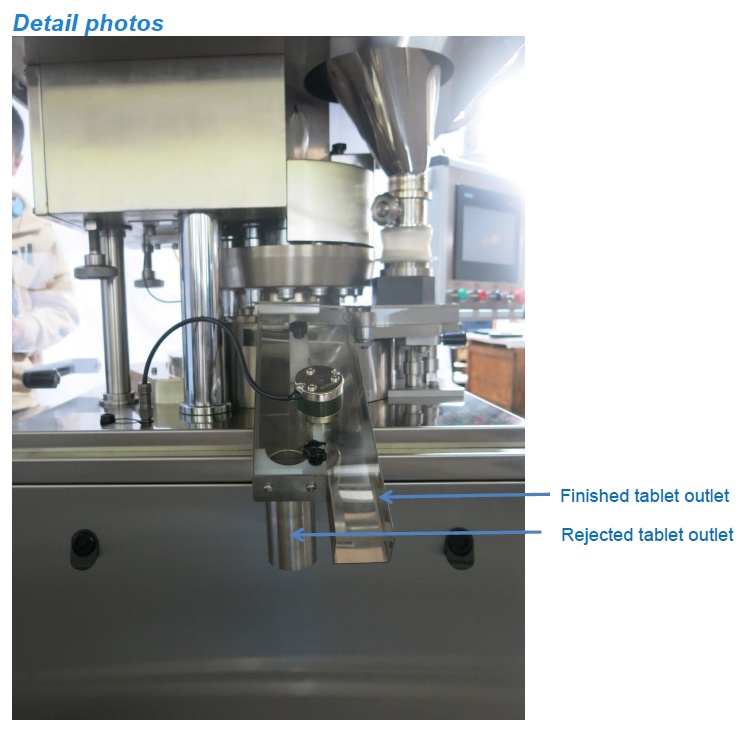

7. Automatic reject for unqualified tablets.

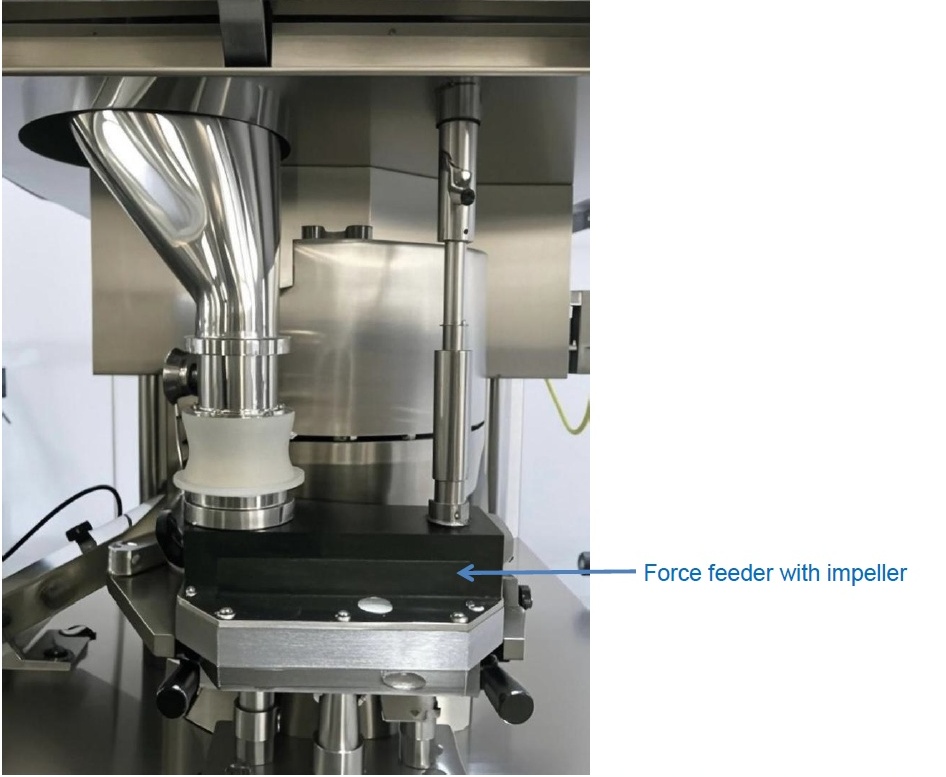

8. Force feeder with impellers with central feeding,
which guarantee the flow of powder and ensures the accuracy of feeding.
9. Well-designed press powder plate for a tight seal,
it helps reduce powder dispersion and spillage, improving material cleaning.
10. Turret dies hole by precision-enhanced CNC machine, the dies fasten screws
are by full-surface fasten design, providing a tighter and more secure fasten.
This allows for safer operation and enables manual installation of dies without any tools.

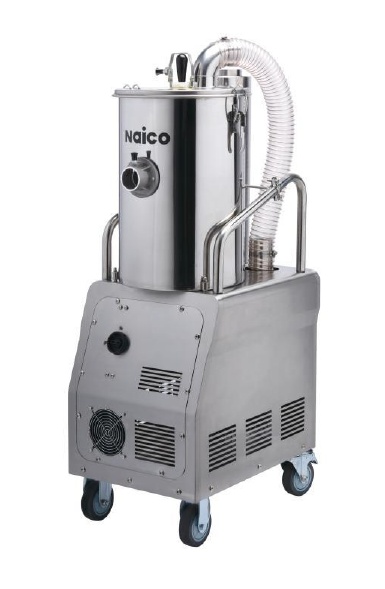

11. Equipped with large area dust absorbing device connect with dust collect system.
12. Material contact part is SUS316L stainless steel for pharmaceuticals.
13. With central oil lubrication system, lubrication can be set through touch screen.
14. With formula save and use function, utilization and minimizing production loss.
It also guarantee the tablet press room
15. Adopts PLC and overload protection.
16. Replacement filling cams for a wide range tablet thickness.
17. Production information report and parameter can save to U disk.
18. Designed of electrical cabinet located at the rear of the machine,
Ensures complete separation from compression area,
effectively isolating the electrical components from dust contamination.
*(Subject to Manufactures comparable configuration)
